Experiment
Title

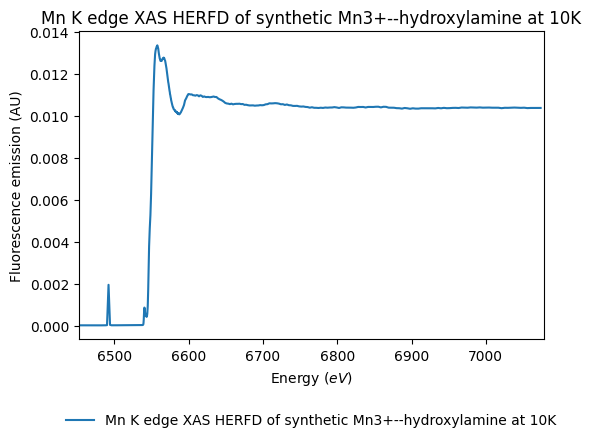

Mn K edge XAS HERFD of synthetic Mn3+­-hydroxylamine at 10K
DOI
10.26302/SSHADE/EXPERIMENT_DL_20181107_002
Data reference
Luneau, Dominique; Lannes, Anthony; Hazemann, Jean-Louis; Kieffer, Isabelle (2016): Mn K edge XAS HERFD of synthetic Mn3+­-hydroxylamine at 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DL_20181107_002
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 6452.0 - 7078.0 0.34 $Mn$ (K: 6.539 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the spectrum of a reference Mn metallic foil (first maximum of the derivative set at 6539 eV). The resolution was 0.65eV (FWHM of the elastic peak).
Observation mode
single spot
Date begin
2016-03-01

Versions

Release date
2018-11-08 09:55:25 UTC+0000
Version (Date)
#1 (2018-11-08 09:25:35 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
