Pt L3 edge XAS HERFD of metallic Pt powder at ambient conditions | FAME

Experiment

Title: Pt L3 edge XAS HERFD of metallic Pt powder at ambient conditions

References

DOI: 10.26302/SSHADE/EXPERIMENT_CL_20181123_001
Data reference: Legens, Christèle; Fialho Batista, Ana Teresa (2018): Pt L3 edge XAS HERFD of metallic Pt powder at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CL_20181123_001

Owner

Database(s)

FAME

Experimentalists

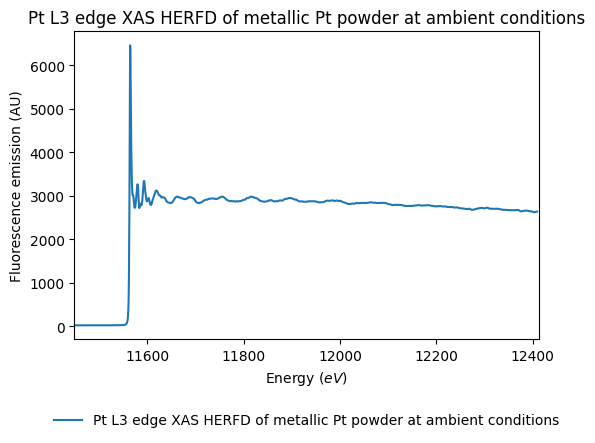

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	11449.0 - 12414.0		0.59		$Pt$ (L3: 11.5637 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 11 564 eV.

Spatial parameters

Observation mode: single spot

History

Date begin: 2018-11-23

Versions

Release date: 2020-04-15 07:43:25+0000 UTC
Version (Date): #1 (2020-04-15 07:43:25+0000 UTC, Updated: 2020-04-16 13:34:03+0000 UTC)
