Experiment
Title
VNIR reflectance spectra of Natrite with 3 different grain sizes and at variable temperature (93-279 K)
DOI
10.26302/SSHADE/EXPERIMENT_CC_20180723_01
Data reference
DeAngelis, Simone; Carli, Cristian; Tosi, Federico; Beck, Pierre; Brissaud, Olivier; Schmitt, Bernard; Potin, Sandra (2016): VNIR reflectance spectra of Natrite with 3 different grain sizes and at variable temperature (93-279 K). SSHADE/REFL_SLAB+CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CC_20180723_01
Publications
Type(s)
laboratory measurement
Description

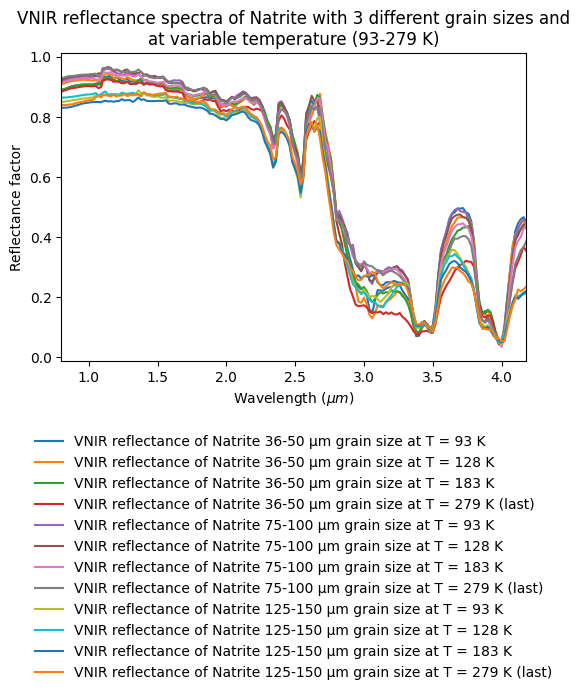

Vis-NIR (0.8-4.2 µm) reflectance spectra of Natrite with three different grain sizes (36-50, 75-100 and 125-150 µm) acquired at 11 temperatures between 93K and 279K
Number of spectra
36
Variable type(s)
  • sample grain size
  • temperature
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Sample holder
Aluminum plate with 3 mm deep circular hole (48 mm diameter) inside P-T controled copper cell closed by sapphire windows and cooled by helium cryocooler (CarboN-IR environmental cell)
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
Vis, NIR
Valid spectral range(s)
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge
#1 0.8 - 1.6 0.02 0.01 0.001
#2 1.6 - 3.0 0.02 0.019 0.002
#3 3.0 - 4.18 0.02 0.039 0.004
Comments
Measured over the 0.80-4.18 µm range
Observation geometry
bidirectional
Observation mode
fixed angles
Incidence angle
20.0°
Emergence angle
0.0°
Azimuth angle
0.0°
Phase angle
20.0°
Resolution illumination
2.0°
Resolution observation
2.0°
Observation mode
single spot
Spatial resolution
20.0 $mm$
Date begin - end
2016-11-21 - 2016-11-23

Versions

Release date
2019-12-19 19:01:20 UTC+0000
Version (Date)
#1 (2019-12-19 19:01:20 UTC+0000, Updated: 2019-12-19 19:01:20 UTC+0000)
Sponsors
  • European Commission - Horizon 2020-RI (EC-H2020) (EPN2020-RI: Europlanet 2020 Research Infrastructure, grant No 654208 (TA2/DPSF/CSS/16-EPN2-028))
