Spectrum preview
Title

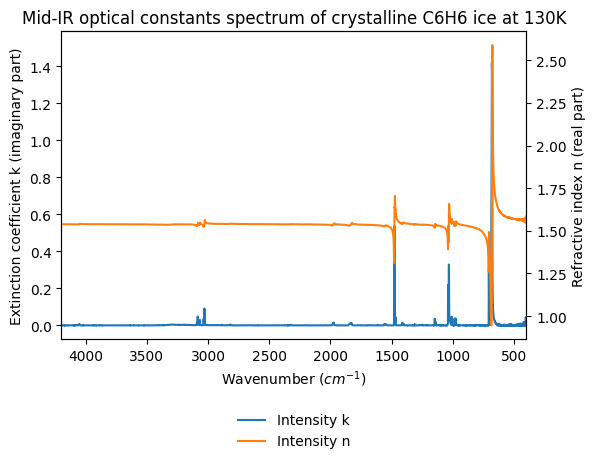

Mid-IR optical constants spectrum of crystalline C6H6 ice at 130K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 4200.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=2.21237390821°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
C6H6 crystalline ice condensed at 130K
Origin
laboratory
Texture
compact poor grained
Thickness
1.65 $\pm$ 0.05 ${\mu}m$
Temperature
130.0 $\pm$ 0.5 $K$
Fluid
'
References
Data reference
Schmitt, Bernard; Bernard, Jean-Michel (2015): Mid-IR transmission and optical constants spectra of crystalline C6H6 at 130K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
