- Title

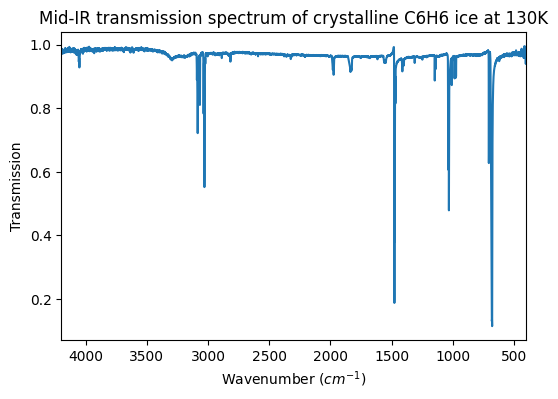

- Mid-IR transmission spectrum of crystalline C6H6 ice at 130K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2017-12-12 08:22:38 UTC+0000)
- Instrument
- Nicolet 800 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 4200.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- C6H6 crystalline ice condensed at 130K
- Origin
- laboratory
- Texture
- compact poor grained
- Thickness
- 1.65 $\pm$ 0.05 ${\mu}m$
- Temperature
- 130.0 $\pm$ 0.5 $K$
- Fluid
-
- ultra high vacuum - ~1e-9 mbar , 100.0%
References
- Data reference
- Schmitt, Bernard; Vinatier, Sandrine; Bernard, Jean-Michel (2015): Mid-IR transmission and optical constants spectra of crystalline C6H6 at 130K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20170830_001
