Spectrum preview
Title

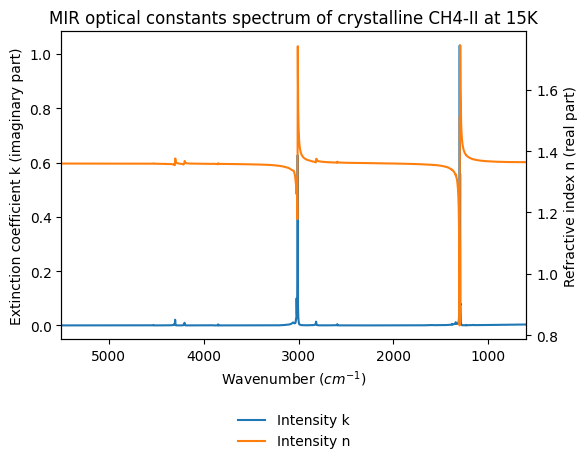

MIR optical constants spectrum of crystalline CH4-II at 15K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
600 - 5500 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
CH4 crystalline - phase II
Origin
laboratory
Texture
compact poor grained
Temperature
15 $\pm$ 0.5 $K$
References
Data reference
Trotta, Frederic; Schmitt, Bernard (1995): MIR optical constants spectrum of crystalline CH4-II at 15K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
