- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20130215_001
- Data reference
- Quirico, Eric; Schmitt, Bernard (2004): Near-IR optical constants of crystalline CO2 ice at 179 K completed with 28K data. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130215_001
- Publications
- Associated band lists
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

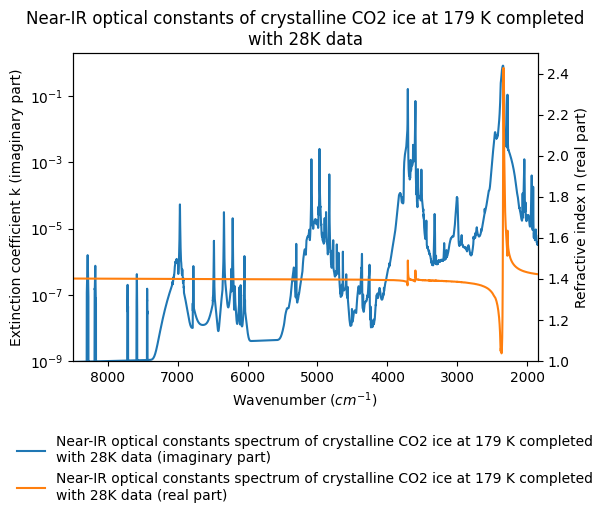

- Near-IR optical constants of crystalline CO2 ice at 179 K, completed by data at 28K for the top of medium-strong bands
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Near-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 1850.0 - 8500.0 0.4821314 0.92 0.05
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Image size
- 2.5 x 2.5 $mm$
- Date begin
- 2004-06-01
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2020-01-03 10:11:21 UTC+0000)
- Sponsors
-
- Programme National de Planétologie - INSU/CNRS (PNP)
- Centre National d'Etudes Spatiales (CNES) (OMEGA/Mars Express)
