- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20130206_001
- Data reference

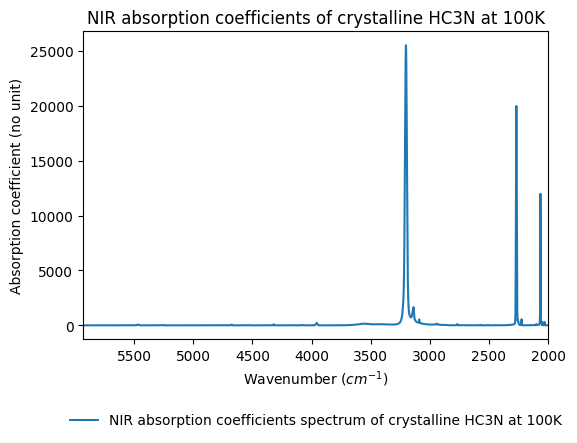

- Quirico, Eric; Schmitt, Bernard (1997): NIR absorption coefficients of crystalline HC3N at 100K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130206_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Near-IR
- Sample holder
- KBr window 2mm thick cooled by He cryostat in UHV chamber with 2 KBr windows 5mm thick
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 2000.0 - 5930.0 0.482131412701804 0.96 0.05
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 180.0°
- Azimuth angle
- 0.0°
- Phase angle
- 2.21237390820801°
- Resolution illumination
- 15.0°
- Resolution observation
- 20.0°
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- no
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Image size
- 2.0 x 2.0 $mm$
- Spatial resolution
- 2.0 ${\pm}$ 0.5 $mm$
- Date begin
- 1997-02-22
Versions
- Release date
- 2018-02-27 11:43:15+0000 UTC
- Version (Date)
- #1 (2018-02-27 11:43:15+0000 UTC, Updated: 2018-02-08 11:09:50+0000 UTC)
