NIR normalized absorbance spectrum of NO crystal at 40 K | GhoSST

Experiment

Title: NIR normalized absorbance spectrum of NO crystal at 40 K

Data reference

Schmitt, Bernard; Quirico, Eric (1999): NIR normalized absorbance spectrum of NO crystal at 40 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.

Publications

Quirico et al., 1999, Icarus, 139, 159 - 178

Owner

Database(s)

GhoSST

Experimentalists

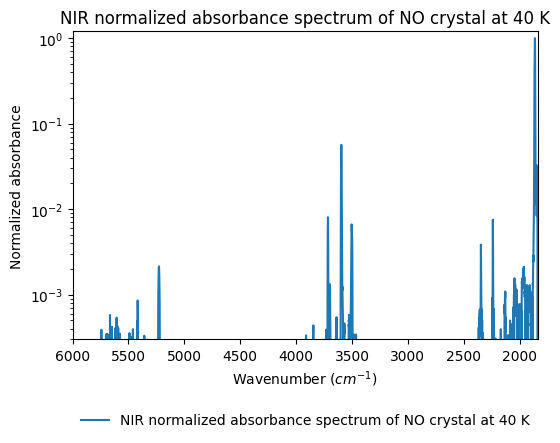

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: Laboratoire de Glaciologie et Géophysique de l'Environnement (LGGE)

Instrument #1

Instrument: Nicolet 800 – transmission Near-IR
Sample holder: MgF2 window 1 mm thick cooled by He cryostat in UHV chamber

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

NIR

Valid spectral range(s)

	Min - Max ( $cm^{-1}$ )	Sampling ( $cm^{-1}$ )	Resolution ( $cm^{-1}$ )	Position accuracy ( $cm^{-1}$ )	Absorption edge
#1	1840.0 - 7000.0	0.482131412701804	0.92	0.05

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no
Comments: possibly partly polarized beam by beamsplitter

Spatial parameters

Observation mode: single spot
Image size: 2.0 x 2.0 $mm$
Spatial resolution: 2.0 ${\pm}$ 0.5 $mm$

History

Date begin: 1999-01-01

Versions

Release date: 2018-01-31 23:51:01+0000 UTC
Version (Date): #1 (2018-01-31 23:51:01+0000 UTC, Updated: 2018-05-11 08:11:19+0000 UTC)
