Spectrum preview
Title

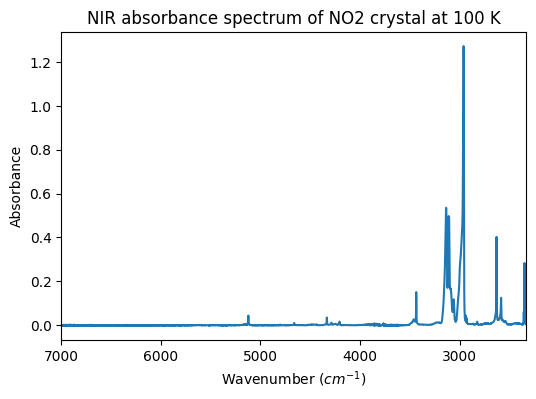

NIR absorbance spectrum of NO2 crystal at 100 K
Database
Spectrum type
absorbance
Version
#1 (2017-11-17 17:25:56)
Instrument parameters
Instrument
Nicolet 800
Valid spectral range(s)
2330.0 - 7000.0 $cm^{-1}$
Observation mode
single spot
Sample preview
Name
NO2 crystalline
Origin
laboratory
Texture
compact poor grained
Temperature
100.0 $\pm$ 0.5 $K$
Irradiated by
  • None
  • None
