- Data reference

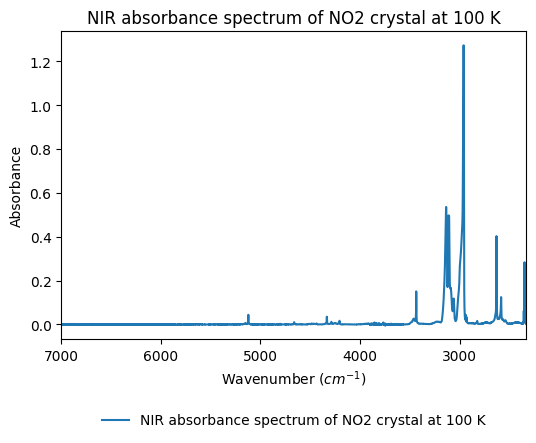

- Schmitt, Bernard; Quirico, Eric (1999): NIR absorbance spectrum of NO2 crystal at 100 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Near-IR
- Sample holder
- MgF2 window 1 mm thick
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 2330.0 - 7000.0 0.482131412701804 0.92 0.05
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- no
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Image size
- 2.0 x 2.0 $mm$
- Spatial resolution
- 2.0 ${\pm}$ 0.5 $mm$
- Date begin
- 1999-01-01
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000)
