Experiment
Title

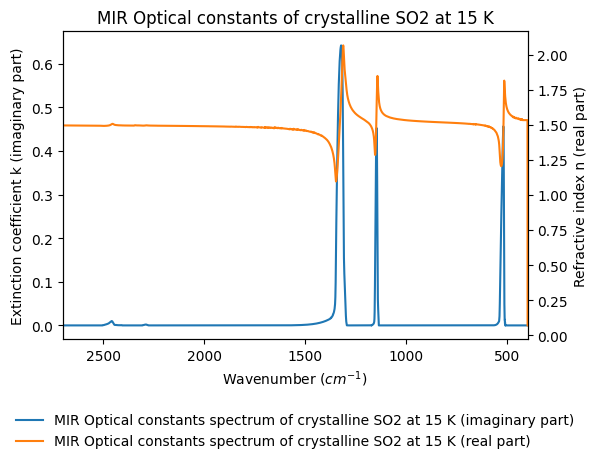

MIR Optical constants of crystalline SO2 at 15 K
Data reference
Trotta, Frederic; Schmitt, Bernard (1996): MIR Optical constants of crystalline SO2 at 15 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
Publications
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Instrument
Nicolet 800 – transmission Mid-IR
Sample holder
CsI window 2mm thick
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 400 - 2700 0.4821507 0.92 0.05
Illumination
Type of polarization
no
Observation
Type of polarization
no
Comments
possibly partly polarized beam by beamsplitter
Observation mode
single spot
Image size
10 x 10 $mm$
Spatial resolution
10 ${\pm}$ 1 $mm$
Date begin
1996-01-01

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2017-11-17 17:16:56 UTC+0000)
