Spectrum preview
Title

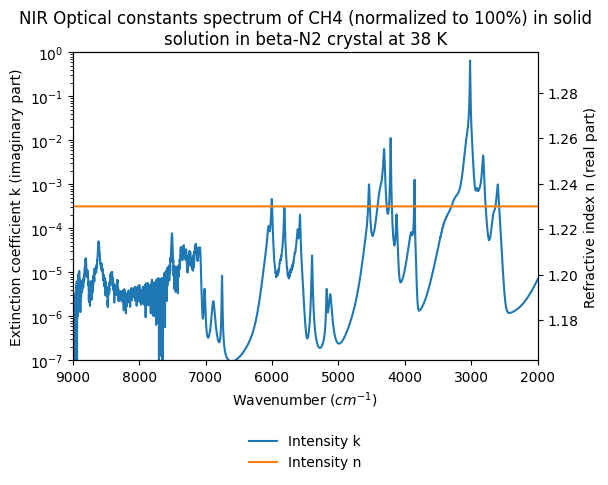

NIR Optical constants spectrum of CH4 (normalized to 100% and with corrected continuum) in solid solution in beta-N2 crystal at 38 K
Database
Spectrum type
optical constants
Version
#2 (2018-02-07 14:43:05)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
Nicolet 800
Valid spectral range(s)
2000.0 - 2235.0 cm-1 ; 2520.0 - 2985.0 cm-1 ; 3090.0 - 10000.0 cm-1
Observation mode
single spot
Sample preview
Name
CH4 in beta-N2 crystalline
Origin
laboratory
Texture
compact coarse grained
Temperature
38.0 $\pm$ 0.3 $K$
Fluid
Irradiated by
  • None
