- DOI
- 10.26302/SSHADE/EXPERIMENT_BMS_20160101_001
- Data reference
- Sivaraman, Bhalamurugan; Kushwaha, Rahul Kumar; Singh, Suendra Vikram (2016): VUV absorbance spectra beetween 10 and 30K of amorphous N2:CO:CH4 ice mixture. SSHADE/ACID (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BMS_20160101_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

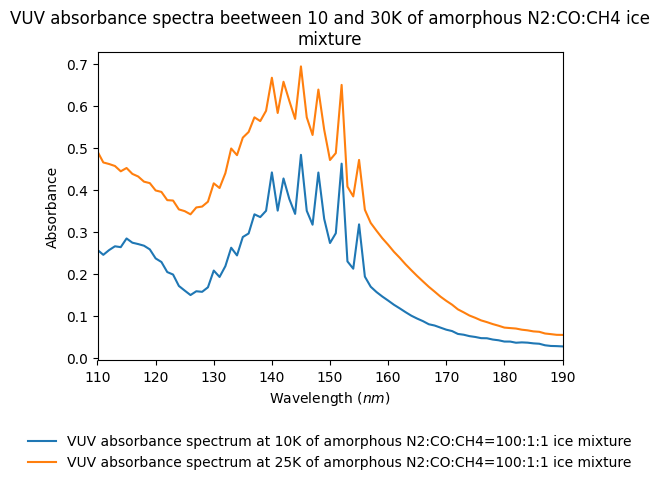

- VUV absorbance spectra at 10, 25 and 30K of amorphous N2:CO:CH4=100:1:1 ice mixture deposited at 10K
- Number of spectra
- 2
- Variable type(s)
-
- temperature
- Laboratory
- Astrochemistry laboratory (AstroChem)
- Instrument
- Beamline 03 A1 – transmission -VUV
- Sample holder
- LiF window cooled by He cryostat in UHV chamber
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- VUV
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 110.0 - 190.0 1.0 0.1
- Comments
- normal incidence to the sample
- Observation mode
- single spot
- Date begin
- 2016-01-01
Versions
- Release date
- 2019-09-06 09:18:49 UTC+0000
- Version (Date)
- #1 (2019-09-06 09:18:49 UTC+0000, Updated: 2018-11-01 09:37:41 UTC+0000)
