- Title

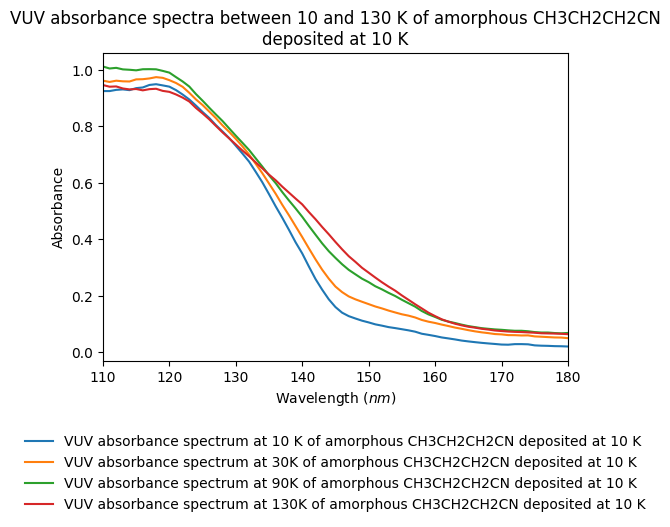

- VUV absorbance spectra between 10 and 130 K of amorphous CH3CH2CH2CN deposited at 10 K
- DOI
- 10.26302/SSHADE/EXPERIMENT_BMS_20150101_003
- Data reference
- Sivaraman, Bhalamurugan; Kushwaha, Rahul Kumar; Singh, Suendra Vikram (2015): VUV absorbance spectra between 10 and 130 K of amorphous CH3CH2CH2CN deposited at 10 K. SSHADE/ACID (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BMS_20150101_003
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- VUV absorbance spectra between 10 and 130 K of amorphous CH3CH2CH2CN deposited at 10 K
- Number of spectra
- 4
- Variable type(s)
-
- temperature
- Laboratory
- Astrochemistry laboratory (AstroChem)
- Instrument
- Beamline 03 A1 – transmission -VUV
- Sample holder
- LiF window cooled by He cryostat in UHV chamber
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- VUV
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 110.0 - 180.0 1.0 1.0
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Comments
- normal incidence to the sample
- Observation mode
- single spot
- Date begin
- 2015-01-01
Versions
- Release date
- 2019-09-15 17:44:56 UTC+0000
- Version (Date)
- #1 (2019-09-15 17:44:56 UTC+0000, Updated: 2019-09-13 18:09:33 UTC+0000)
