Experiment
Title

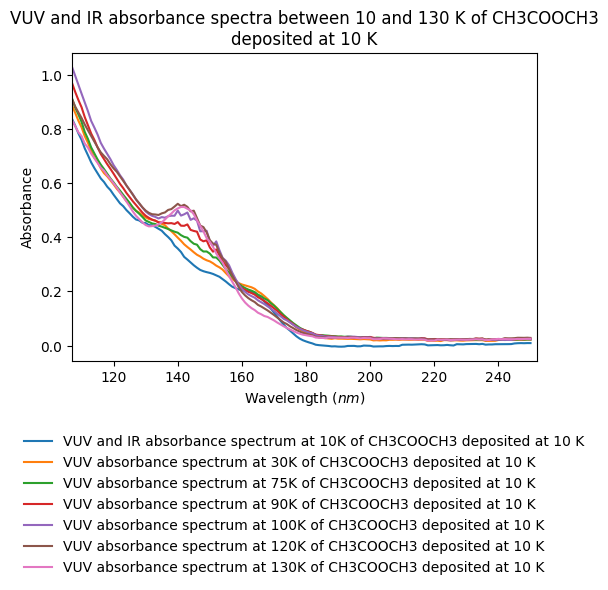

VUV and IR absorbance spectra between 10 and 130 K of CH3COOCH3 deposited at 10 K
Data reference
Sivaraman, Bhalamurugan; Kushwaha, Rahul Kumar; Singh, Suendra Vikram (2012): VUV and IR absorbance spectra between 10 and 130 K of CH3COOCH3 deposited at 10 K. SSHADE/ACID (OSUG Data Center). Dataset/Spectral Data.
Publications
Type(s)
laboratory measurement
Description
VUV and IR absorbance spectra between 10 and 130 K of CH3COOCH3 deposited at 10 K
Variable(s)
temperature
Number of spectra
7
Instrument
Beamline 03 A1 – transmission -VUV
Sample holder
LiF window cooled by He cryostat in UHV chamber
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
VUV
Valid spectral range(s)
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge
#1 107.0 - 252.0 1.0 0.1
Observation geometry
direct
Observation mode
fixed angles
Comments
normal incidence to the sample
Observation mode
single spot
Variable type(s)
  • temperature
Date begin
2012-01-01

Versions

Release date
2019-09-06 09:19:01 UTC+0000
Version (Date)
#1 (2019-07-25 09:53:26 UTC+0000, Updated: 2019-07-29 09:28:29 UTC+0000)
