Experiment
Title

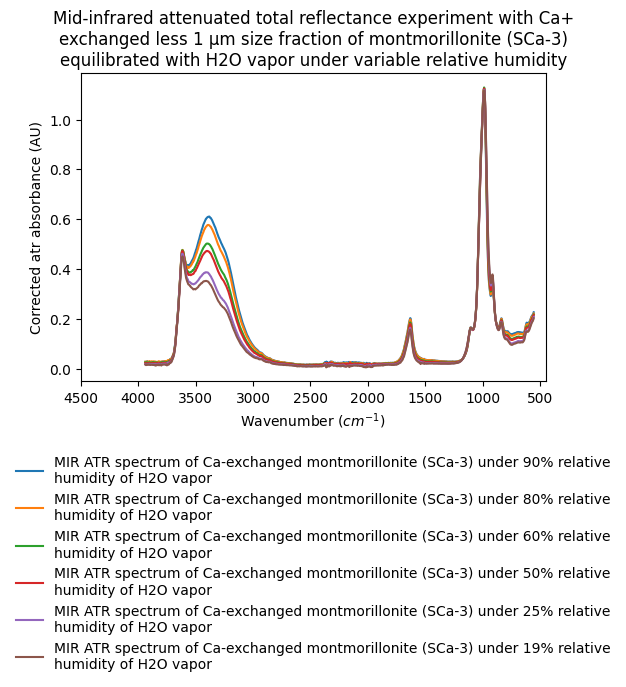

Mid-infrared attenuated total reflectance experiment with Ca+ exchanged less 1 μm size fraction of montmorillonite (SCa-3) equilibrated with H2O vapor under variable relative humidity
DOI
10.26302/SSHADE/EXPERIMENT_AK_20141123_1
Data reference
Kuligiewicz, Artur; Derkowski, Arkadiusz; Gionis, Vassilis; Chryssikos, Georgios (2014): Mid-infrared attenuated total reflectance experiment with Ca+ exchanged less 1 μm size fraction of montmorillonite (SCa-3) equilibrated with H2O vapor under variable relative humidity. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AK_20141123_1
Publications
Type(s)
laboratory measurement
Variable(s)
sample composition
Number of spectra
8
Instrument
FTIR-ATR-MIR
Sample holder
The ATR plate fitted with a home-made envrionmental chamber at room p,T
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 450.0 - 4500.0 1.0 4.0
Observation geometry
specular
Observation mode
fixed angles
Incidence angle
45.0°
Emergence angle
45.0°
Observation mode
single spot
Variable type(s)
  • sample composition
Date begin - end
2014-11-23 - 2014-11-23

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2017-09-08 14:33:51 UTC+0000, Updated: 2019-08-02 08:07:53 UTC+0000)
