Experiment
Title

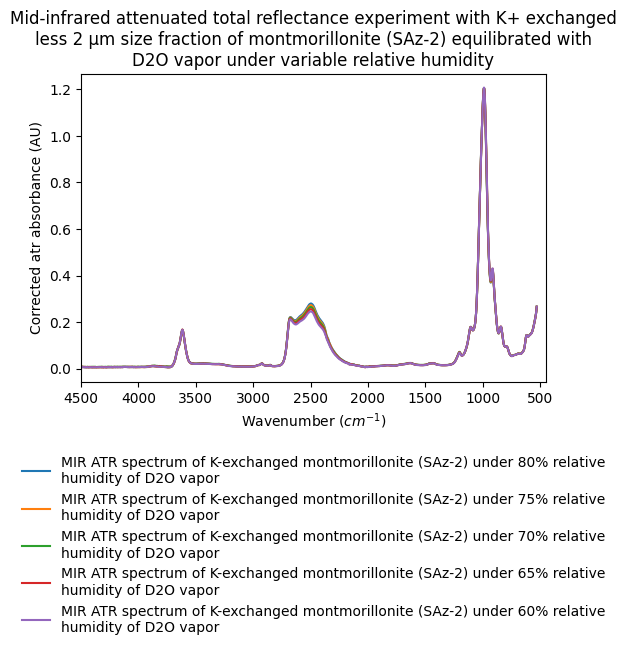

Mid-infrared attenuated total reflectance experiment with K+ exchanged less 2 μm size fraction of montmorillonite (SAz-2) equilibrated with D2O vapor under variable relative humidity
Data reference
Kuligiewicz, Artur; Derkowski, Arkadiusz; Gionis, Vassilis; Chryssikos, Georgios (2014): Mid-infrared attenuated total reflectance experiment with K+ exchanged less 2 μm size fraction of montmorillonite (SAz-2) equilibrated with D2O vapor under variable relative humidity. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data.
Publications
Type(s)
laboratory measurement
Variable(s)
sample composition
Number of spectra
5
Instrument
FTIR-ATR-MIR
Sample holder
The ATR plate fitted with a home-made envrionmental chamber at room p,T
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 450.0 - 4500.0 1.0 4.0
Observation geometry
specular
Observation mode
fixed angles
Incidence angle
45.0°
Emergence angle
45.0°
Observation mode
single spot
Variable type(s)
  • sample composition
Date begin - end
2014-11-11 - 2014-11-11

Versions

Release date
2019-07-30 09:55:27 UTC+0000
Version (Date)
#2 (2019-07-30 09:55:27 UTC+0000)
Older version(s)
