Spectrum preview
Title

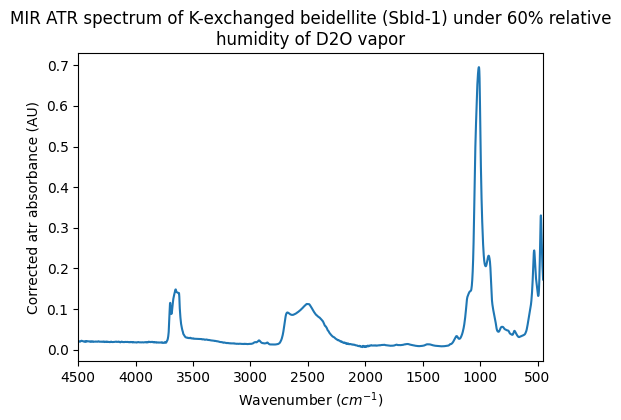

MIR ATR spectrum of K-SbId1 smectite saturated with D2O at RH60
Database
Spectrum type
corrected ATR absorbance
Version
#1 (2017-09-08 15:29:46)
Instrument parameters
Instrument
Nicolet6700
Valid spectral range(s)
450.0 - 5000.0 $cm^{-1}$
Observation mode
single spot
Sample preview
Name
K-exchanged smectite saturated with D2O at RH=60%
Origin
natural terrestrial
Texture
earthy
Thickness
0.01 $\pm$ 0.005 $cm$
Temperature
25.0 $\pm$ 3.0 $C$
Pressure
1013.0 $\pm$ 15.0 $hPa$
Fluid
