Experiment
Title

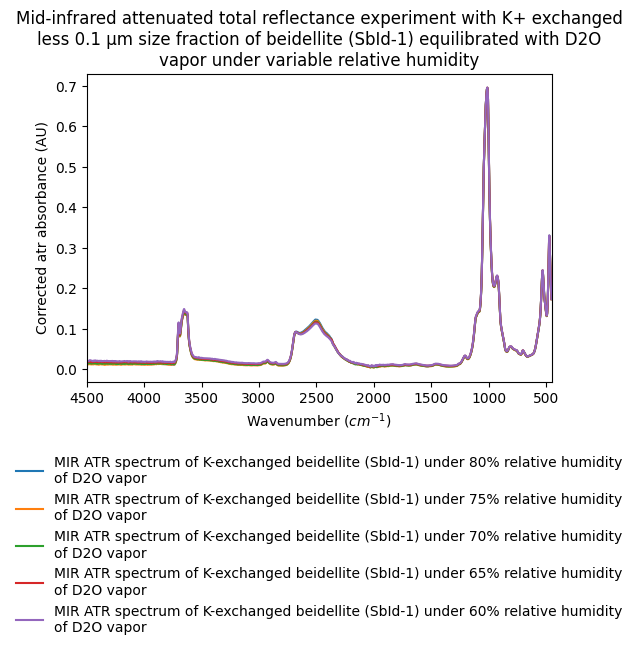

MID-infrared ATR-experiment Sample K SbId1 D2O sat from RH80 to RH60
Database
Experimentalists
Type(s)
laboratory
Variable(s)
sample composition
Instrument
Nicolet6700
Sample holder
The ATR plate fitted with a home-made envrionmental chamber at room p,T
Standard medium
vacuum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max (cm-1) Sampling (cm-1) Resolution (cm-1) Position accuracy (cm-1) Absorption edge
#1 450.0 - 5000.0 1.0 4.0
Incidence angle(s)
45.0°
Emergence angle(s)
45.0°
Observation mode
single spot
Date begin - end
2014-11-09 - 2014-11-09
