Sample

Name: Water ice spherical particles 4.5±2.5 μm at about 120 K

Owner of sample

Database

BYPASS

Experimentalists

Zuriñe Yoldi

Origin of sample

Date: 2018-01-12

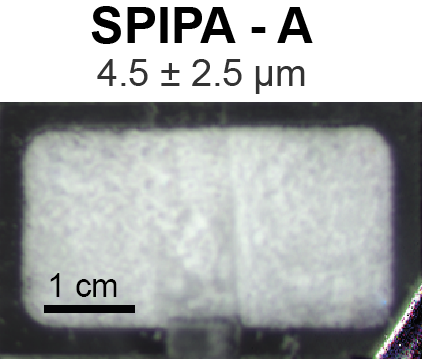

SPIPA-A water ice particles in the sample holder during the measurement.

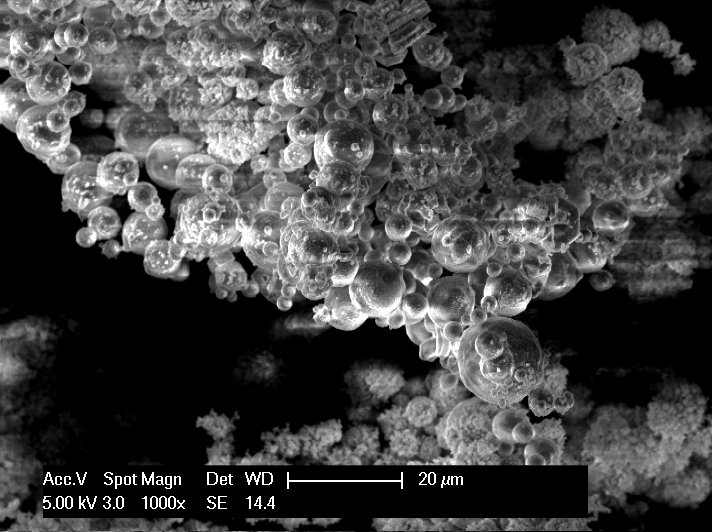

SPIPA-A water ice particles observed with Scanning Electron Microscope.

Physical characteristics

Thickness: 20.0 $\pm$ 1.0 $mm$
Diameter: 20.0 $mm$
Surface roughness: smooth
Substrate material: aluminum sample holder covered with a black aluminum tape
Comments: Fresh sample prepared just before the measurement.

Sample environment: Temperature

Temperature: 120.0 $\pm$ 10.0 $K$
Comments: The temperature of the sample was not controlled and measured precisely.

Sample environment: Fluid

Type: vacuum
Fluid temperature: 120.0 $K$
Fluid pressure: 20.0 $\pm$ 1.0 $mbar$

Layers in sample

Number

1

Layers

Layer #1 , 20.0 $mm$

Sample processings
