Sample

Name: Nontronite NAu-1, less than 1mm thick layer

Owner of sample

Database

CSS

Experimentalists

Origin of sample

Date: 2019-04-25
Provider: IAPS/INAF/Source Clays Repository of The Clay Minerals Society

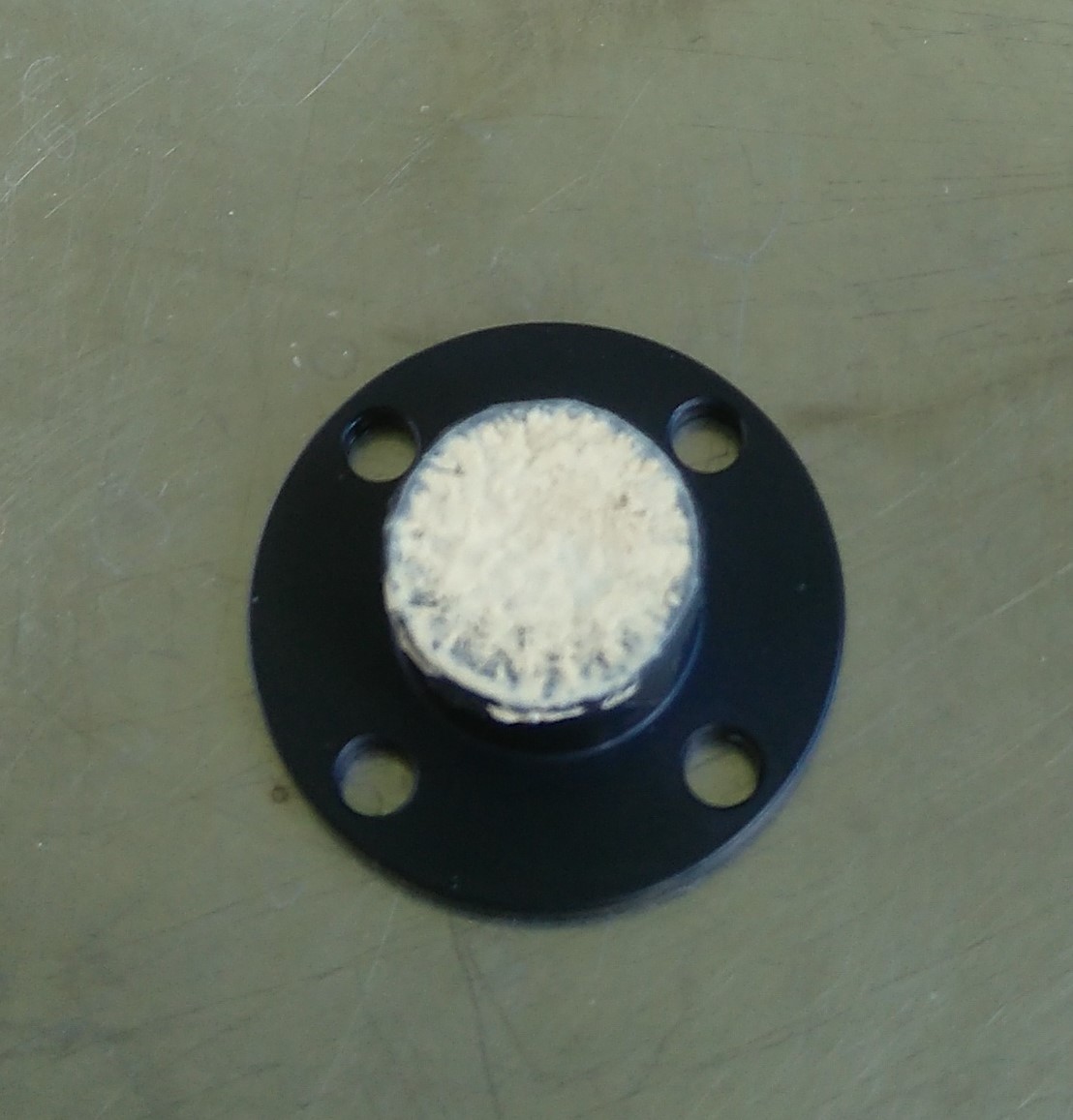

Thin (less than 1mm) layer of nontronite NAu-1 deposited on a black substrate via spin-coating using a suspension in ethanol.

Physical characteristics

Thickness: 0.5 $\pm$ 0.2 $mm$
Diameter: 10.0 $mm$
Substrate material: black aluminum tape
Substrate comments: black matte aluminum tape

Sample environment: Temperature

Temperature: 333.0 $\pm$ 2.0 $K$

Sample environment: Fluid

Type: vacuum
Fluid pressure: 1.0e-05 $mbar$
Comments: The sample was measured under high vacuum. The pressure was probably lower than 10^-5 mbar.

Layers in sample

Number

1

Layers

Nontronite NAu-1, less than 1mm thick layer , 0.5 $mm$
