Sample
Name
Granite (CM1) cut slab
Database
Experimentalists
Date
2026-03-02
Provider
Martin GUITREAU

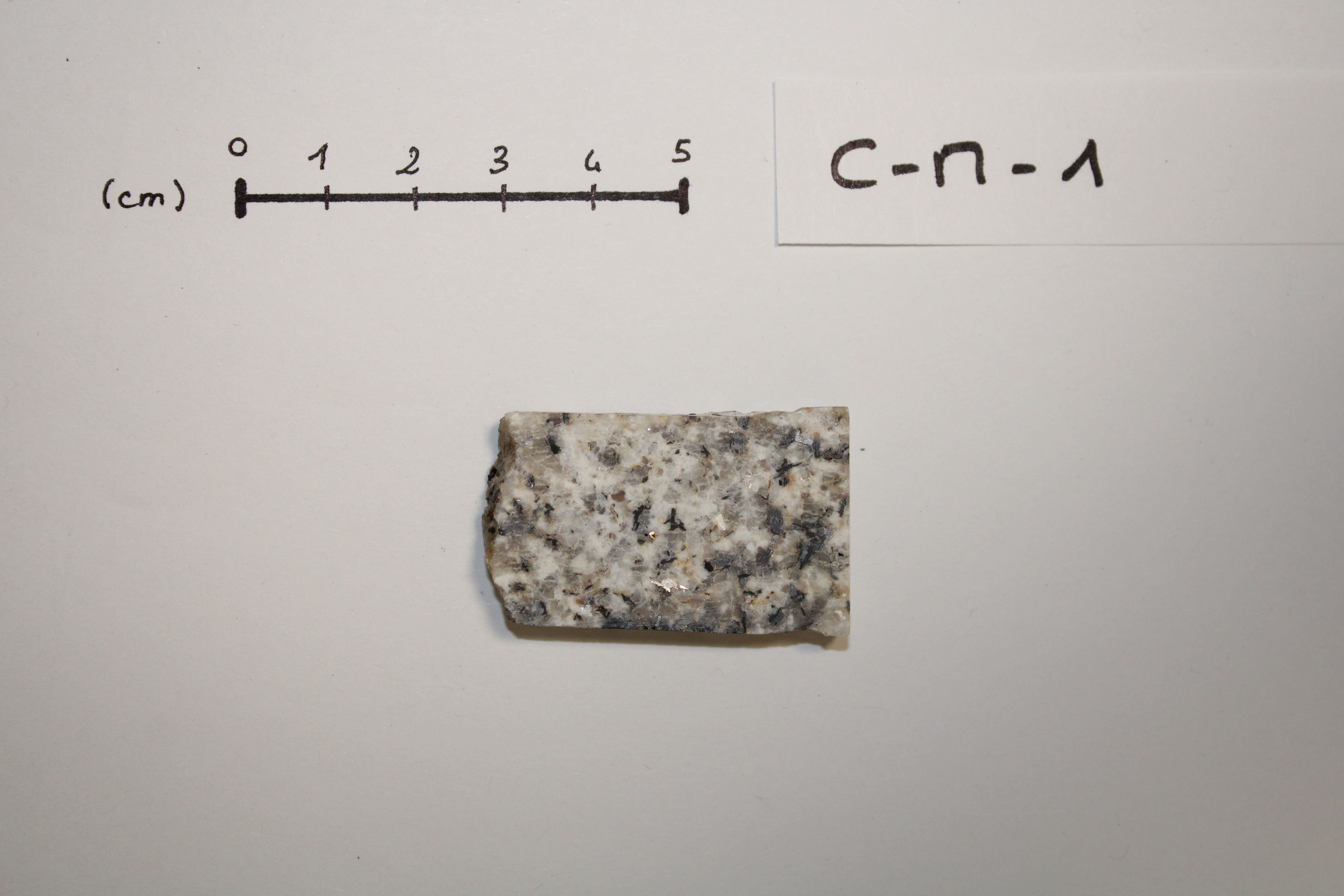

Picture of the sample as a cut slab.

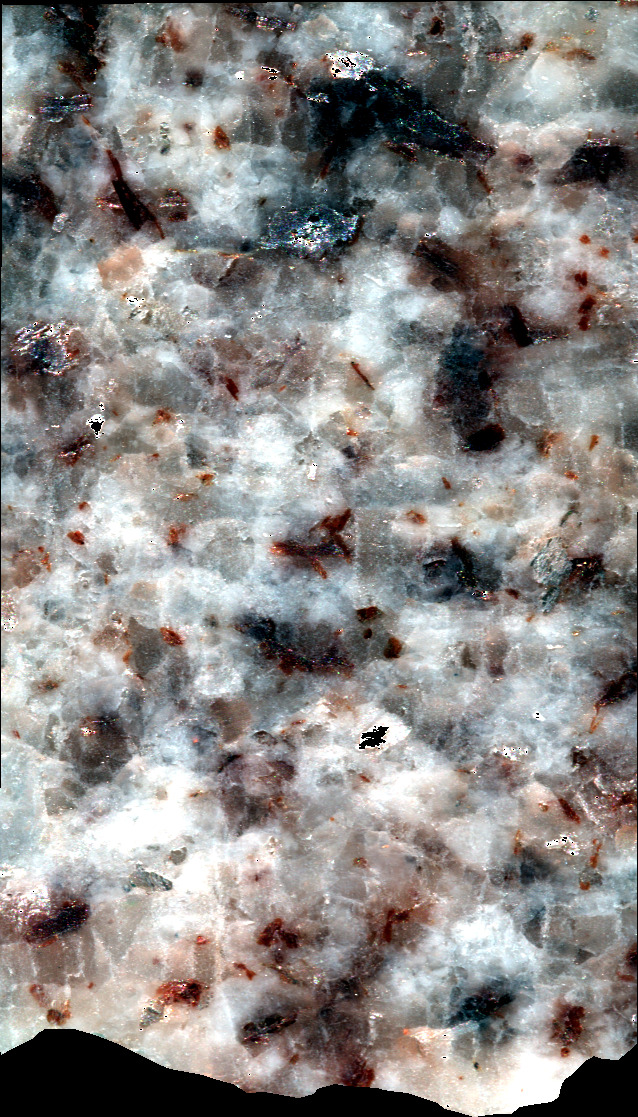

SWIR hyperspectral cube : RGB composition.

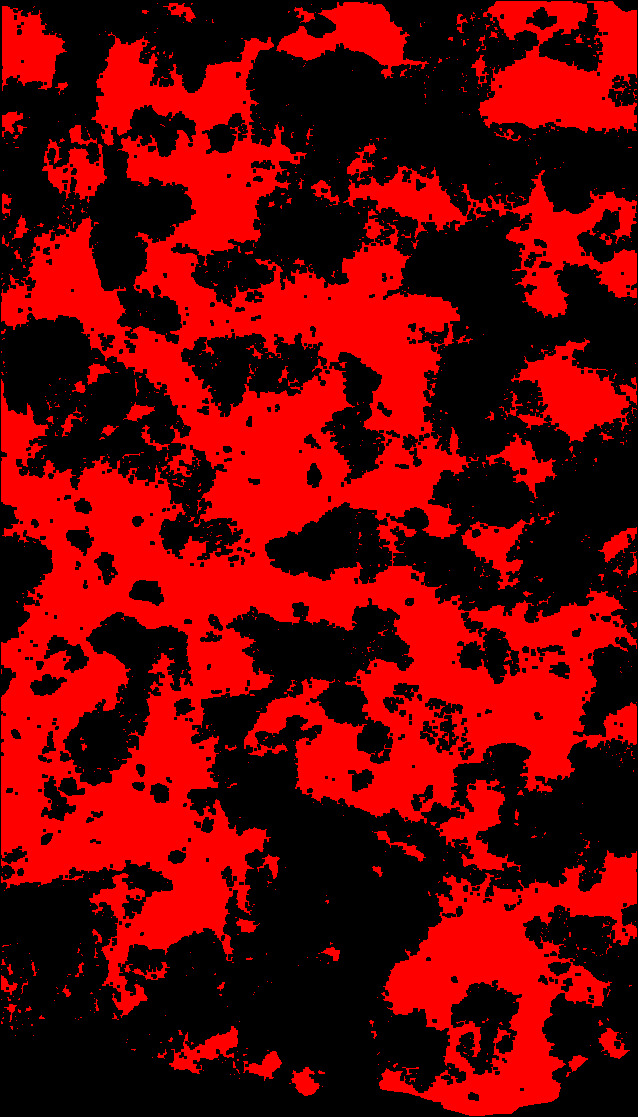

SWIR hyperspectral cube processed with ENVI : plagioclase SAM classification.
Physical characteristics
Comments
CM1 sample cut in the form of a sugar. This plutonic rock is mainly composed of plagioclase, quartz, biotite, muscovite and K-feldspars (origin : Massif Central, FRANCE).
Temperature
20.0 $\pm$ 5.0 $^{\circ}C$
Type
ambient air
Fluid temperature
20.0 $\pm$ 5.0 $^{\circ}C$
Number
1
Layers
