Sample
Name
Volcanic glass N11 - grains: 32-80µm
Database
Experimentalists
Date
2022-01-01
Provider
Dept. of Physics and Geology, University of Perugia

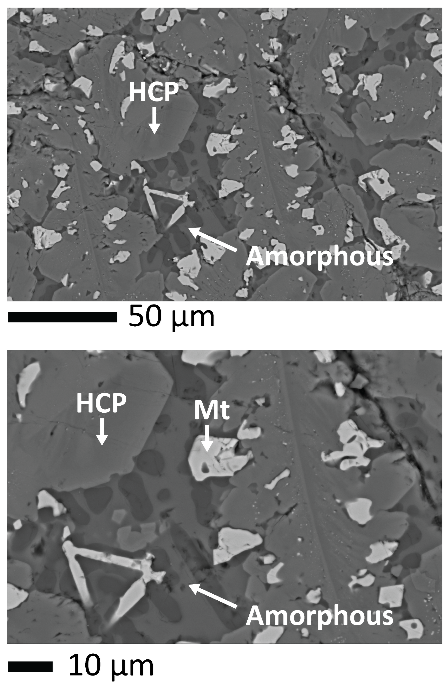

SEM pictures acquired at magnifications x1000 and x2000) of the samples N11. Labels: 'HCP' high calcium pyroxenes (diopside), 'Mt' iron oxides (magnetite), 'amorphous' residual glass.
Physical characteristics
Thickness
5.0 $\pm$ 0.1 $mm$
Diameter
20.0 $mm$
Volume
1571.0 $mm^3$
Surface roughness
smooth
Substrate material
Aluminium
Substrate comments
cylindrical hole, diameter: 20 mm, depth: 5 mm
Comments
synthetic sample
Temperature
300.0 $\pm$ 5.0 $K$
Temperature max
1370.0 $K$
Type
ambient air
Fluid temperature
300.0 $K$
Fluid pressure
1.0 $bar$
Number
1
Layers
