- Title

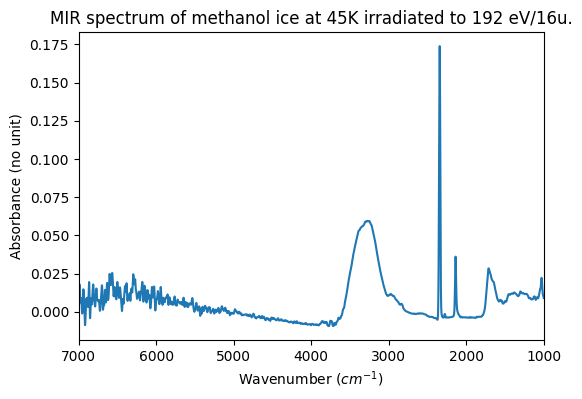

- MIR spectrum of methanol ice at 45K irradiated to 192 eV/16u.
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2025-02-24 14:59:07+0000 UTC)
- Instrument
- Bruker Tensor - transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1000.0 - 7000.0 $cm^{-1}$
- Observation geometry
- direct : i=10.0° ; e=170.0° ; az=180.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Methanol ice, thin deposited at 45K
- Origin
- laboratory
- Texture
- compact glassy
- Thickness
- 500.0 $\pm$ 50.0 $nm$
- Temperature
- 45.0 $\pm$ 0.5 $K$
- Irradiated by
-
- atomic ions , 30.0 $keV.particle^{-1}$
References
- Data reference
- Henault, Elsa (2024): MIR spectra of methanol ice irradiated by $H^+$ ions at 45 K, increasing irradiation doses. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20250224_01
- Publications
