- Title

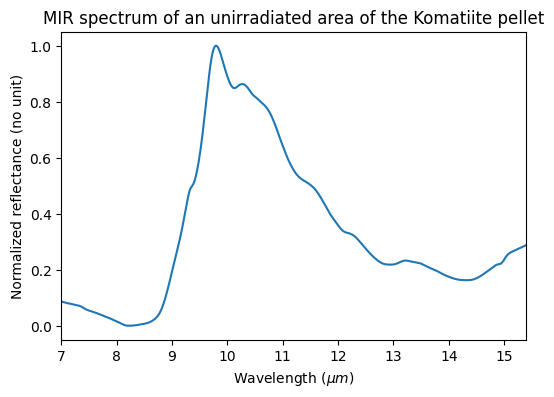

- MIR spectrum of an unirradiated area of the Komatiite pellet
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized reflectance
- Version
- #1 (2025-01-27 17:01:17 UTC+0000)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 7.0 - 15.4 ${\mu}m$
- Observation geometry
- specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- Komatiite pellet
- Texture
- compact mixed
- Thickness
- 1.5 $\pm$ 0.5 $mm$
- Temperature
- 300.0 $\pm$ 5.0 $K$
- Pressure
- 5200.0 $bar$
References
- Data reference
- Caminiti, Emma; Lantz, Cateline (2024): MIR spectra of Mercury terrestrial analogues irradiated by $He^+$ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20250127_01
- Publications
