Spectrum preview
Title

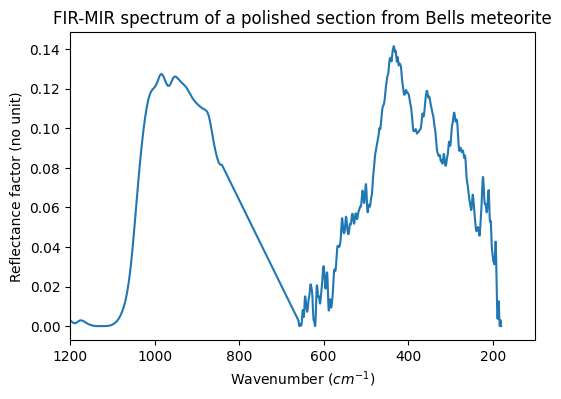

FIR-MIR spectrum of a polished section from Bells meteorite
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2022-09-01 11:38:28 UTC+0000)
Instrument parameters
Instrument
SMIS Cary 670 - confocal reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
800.0 - 1200.0 $cm^{-1}$
Observation geometry
specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
rastered
Instrument parameters
Instrument
SMIS NEXUS 6700 - confocal reflexion Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
100.0 - 800.0 $cm^{-1}$
Observation geometry
specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Bells polished section
Texture
compact
Thickness
1.0 $\pm$ 0.5 $cm$
Temperature
20.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Brunetto, Rosario; Dionnet, Zélia (2020): FIR-MIR reflectance spectra of different samples of carbonaceous chondrites (polished sections). SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20220901
