Spectrum preview
Title

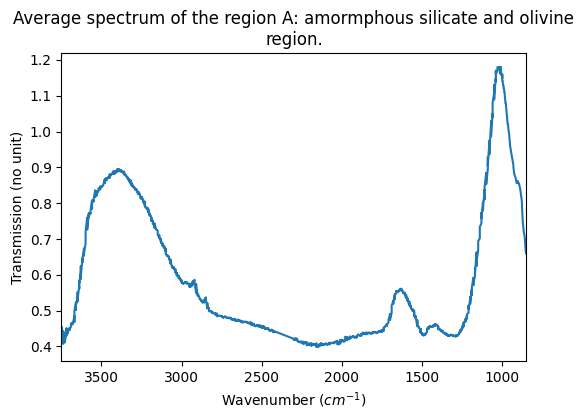

Average spectrum of the region A: amormphous silicate and olivine region.
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2021-03-17 17:57:21 UTC+0000)
Instrument parameters
Instrument
SMIS Cary 670 - trans Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
849.0 - 3750.0 $cm^{-1}$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
Sample preview
Name
Grain_ZEDGrain of Paris meteorite
Texture
single grain
Thickness
3.0 $\pm$ 0.5 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
References
Data reference
Dionnet, ZĂ©lia (2016): MIR spectrocopy of Paris meteorite. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZD_20160831_01
Publications
