- Title

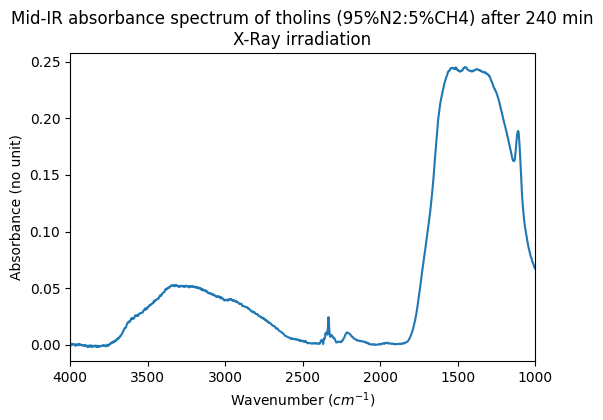

- Mid-IR absorbance spectrum of tholins (95%N2:5%CH4) after 240 min X-Ray irradiation
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2018-12-14 12:08:10 UTC+0000)
- Instrument
- SMIS Magna 860 - transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1000.0 - 4000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- Tholins Film for X-ray irradiation LATMOS 95%N2:5%CH4
- Origin
- laboratory
- Texture
- compact
- Thickness
- 1139.0 $\pm$ 42.0 $nm$
- Temperature
- 295.0 $\pm$ 2.0 $K$
- Irradiated by
-
- X photons , 0.5 $keV.particle^{-1}$
References
- Data reference
- Gavilan, Lisseth; Carrasco, Nathalie; Sandt, Christophe (2017): Mid-IR absorbance spectra evolution of tholins thin film (95%N2:5%CH4) upon X-Ray irradiation. SSHADE/SPAN (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_TG_20181312_002
