- Title

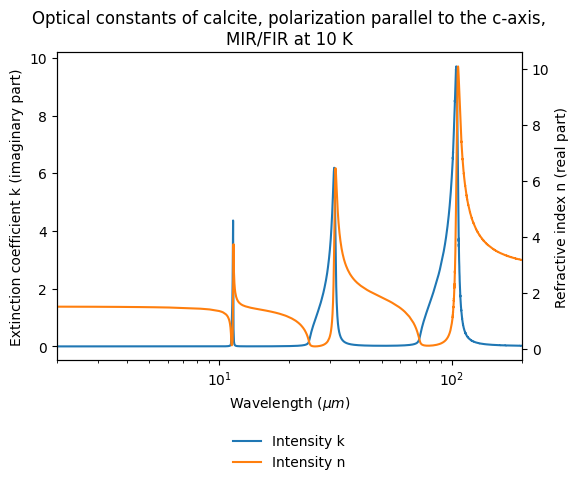

- Optical constants of calcite, polarization parallel to the c-axis, MIR/FIR at 10 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2021-01-15 11:45:44 UTC+0000)
- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2.0 - 25.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 15.0 - 200.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Calcite, surface parallel to the crystallographic c-axis
- Origin
- natural terrestrial
- Texture
- compact crystal
- Thickness
- 1.0 $cm$
- Temperature
- 10.0 $\pm$ 5.0 $K$
References
- Data reference
- Posch, Thomas; Mutschke, Harald; Henning, Thomas (2005): T-dependent optical constants of calcite and dolomite. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20210115_001
