Spectrum preview
Title

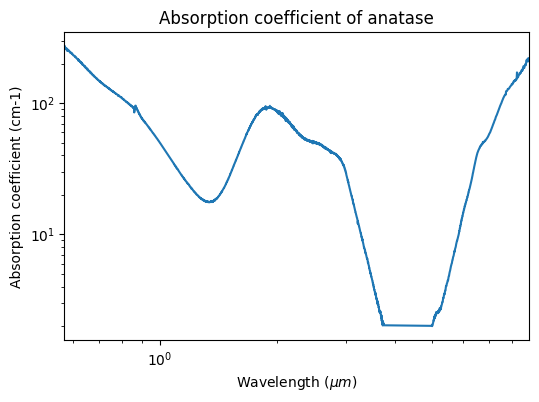

Absorption coefficient of anatase
Database
Experiment type
laboratory measurement
Spectrum type
absorption coefficient
Version
#1 (2020-06-08 09:58:27 UTC+0000)
Instrument parameters
Instrument
Lambda 19 – transmission vis
Spectral observation mode
spectrum
Valid spectral range(s)
0.31900000000000045 - 0.859999999999999 ${\mu}m$
Observation geometry
specular : i=0.0° ; e=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – transmission NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.859999999999999 - 2.0 ${\mu}m$
Observation geometry
specular : i=0.0° ; e=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
1.6 - 10.0 ${\mu}m$
Observation geometry
specular : i=0.0° ; e=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Anatase, 255 µm section of a single crystal, surface along crystallographic c-axis
Origin
natural terrestrial
Texture
compact crystal
Thickness
255.00000000000003 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
References
Data reference
Zeidler, Simon; Posch, Thomas; Mutschke, Harald; Richter, Hannes; Wehrhan, Ortrud (2003): Absorption coefficients in the VIS and NIR for oriented crystalline titanium oxides. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20200608_001
