- Title

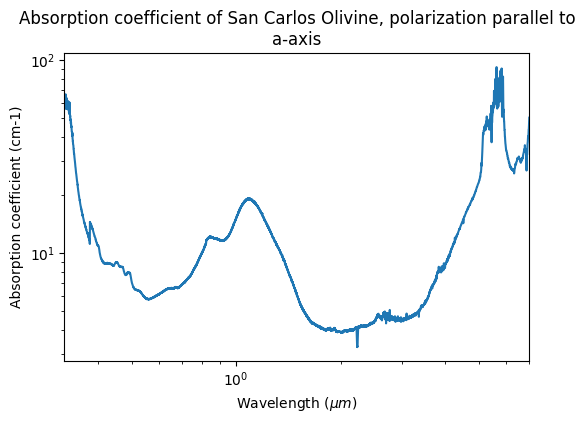

- Absorption coefficient of San Carlos Olivine, polarization parallel to a-axis
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorption coefficient
- Version
- #2 (2020-06-03 07:02:37 UTC+0000)
- Instrument
- Lambda 19 – transmission vis
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.319 - 0.86 ${\mu}m$
- Observation geometry
- specular : i=0.0° ; e=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Lambda 19 – transmission NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.86 - 2.0 ${\mu}m$
- Observation geometry
- specular : i=0.0° ; e=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1.6 - 7.0 ${\mu}m$
- Observation geometry
- specular : i=0.0° ; e=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- San Carlos Olivine (C), surface along the crystallographic a-b plane
- Origin
- natural terrestrial
- Texture
- compact crystal
- Thickness
- 1.0 $mm$
- Temperature
- 300.0 $\pm$ 5.0 $K$
References
- Data reference
- Zeidler, Simon; Posch, Thomas; Mutschke, Harald; Wehrhan, Ortrud (2011): Absorption coefficients in the VIS and NIR for oriented San Carlos Olivine and Sri Lanka Olivine crystals. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20200511_001
