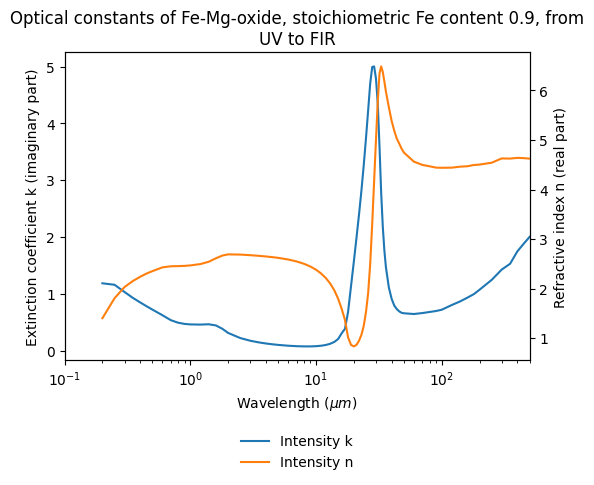

Spectrum preview
Title
Optical constants of Fe-Mg-oxide, stoichiometric Fe content 0.9, from UV to FIR
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2019-08-19 08:39:20 UTC+0000)
Instrument parameters
Instrument
Lambda 19 – reflection UV
Spectral observation mode
spectrum
Valid spectral range(s)
0.19 - 0.319 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – reflection vis
Spectral observation mode
spectrum
Valid spectral range(s)
0.319 - 0.86 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – reflection NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.86 - 3.2 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
2.0 - 25.0 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – reflection Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
15.0 - 500.0 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Embedded/polished (Fe,Mg)O melt droplet, stoichiometric Fe content 0.9
Origin
laboratory
Texture
compact
Temperature
300.0 $\pm$ 5.0 $K$
'
References
Data reference
Henning, Thomas; Begemann, Birgit; Mutschke, Harald; Dorschner, Johann (1994): Optical constants from UV to FIR for 6 Fe(II) and Fe(II)-Mg-oxides. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data.
