- Title

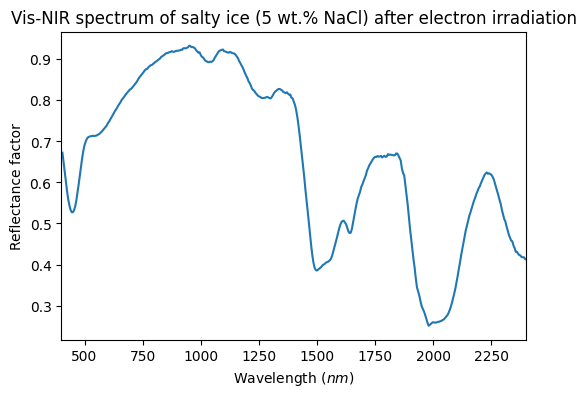

- Vis-NIR spectrum of salty ice (5 wt.% NaCl) after electron irradiation
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2025-04-17 16:37:43+0000 UTC)
- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 2000.0 $nm$ ; 2000.0 - 2400.0 $nm$
- Observation geometry
- biconical : i=0.0° ; e=5.0° ; az=0.0° ; ph=5.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- Spherical particles of salty H2O ice (10-100 µm typical particle diameter, 5 wt.% NaCl). After 2 keV electron irradiation (3.4 × 10^16 e- cm^(−2)).
- Origin
- laboratory
- Texture
- loose fine grained
- Thickness
- 10.0 $\pm$ 1.0 $mm$
- Temperature
- 179.48 $\pm$ 4.0 $K$
- Irradiated by
-
- electrons , 2.0 $keV.particle^{-1}$
References
- Data reference
- Ottersberg, Rafael (2024): VIS-NIR reflectance spectra collected before and after electron irradiation (2keV, 3.4 × 10^16 e- cm^(−2)) of spherical salty ice particles (10-100 µm typical particle diameter) produced by freezing droplets of a solution of 5wt.% NaCl. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RO_20240701_000
