Spectrum preview
Title

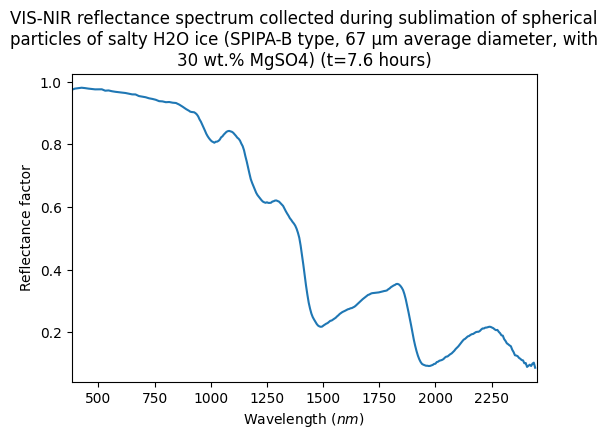

VIS-NIR reflectance spectrum collected during sublimation of spherical particles of salty H2O ice (SPIPA-B type, 67 µm average diameter, with 30 wt.% MgSO4) (t=7.6 hours)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-05-20 14:06:03 UTC+0000)
Instrument parameters
Instrument
MoHIS - Hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
410.0 - 890.0 $nm$ ; 905.0 - 1298.0 $nm$ ; 1304.0 - 2396.0 $nm$
Observation geometry
biconical : i=5.0° ; e=0.0° ; az=90.0° ; ph=5.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Spherical particles of salty H2O ice (SPIPA-B type, 67 µm average diameter, with 30 wt.% MgSO4)
Origin
laboratory
Texture
loose granular
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
150.0 $\pm$ 30.0 $K$
References
Data reference
Cerubini, Romain (2020): VIS-NIR reflectance spectra collected during low-temperature and near-vacuum sublimation of spherical salty ice particles (67 µm average diameter) produced by freezing droplets of solutions of MgSO4 with three different concentrations. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RC_20200508_000
