Spectrum preview
Title

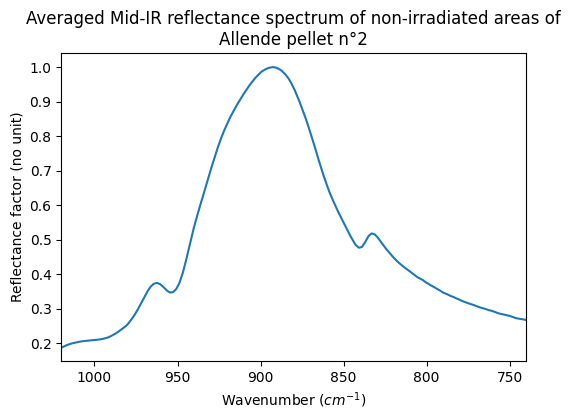

Averaged Mid-IR reflectance spectrum of non-irradiated areas of Allende pellet n°2
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2017-07-07 11:16:42+0000 UTC)
Instrument parameters
Instrument
SMIS NEXUS 6700 - confocal reflexion Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
740.0 - 1020.0 cm1
Observation geometry
biconical :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Allende powder (n°2)
Texture
compact fine grained
Thickness
200.0 ± 100.0 μm
Temperature
300.0 ± 5.0 K
References
Data reference
Brunetto, Rosario (2013): Ion irradiation (He+, Ar+) of an Allende meteorite pellet probed by IR spectroscopy in the MIR range. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20130101_003
