- Instrument
- Thermo DXR - Raman

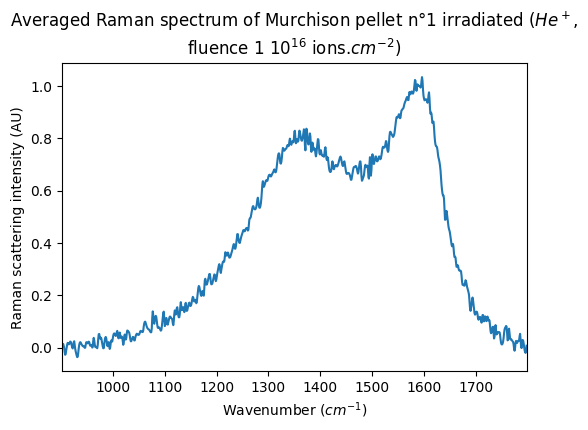

- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 902.0 - 1798.0 cm−1
- Spatial observation mode
- averaged
- Name
- Pellet of Murchison powder (n°1)
- Texture
- compact fine grained
- Thickness
- 200.0 ± 100.0 μm
- Temperature
- 300.0 ± 5.0 K
- Irradiated by
-
- atomic ions , 40.0 keV.particle−1
References
- Data reference
- Brunetto, Rosario (2013): Ion irradiation (He+, Ar+) of a Murchison meteorite pellets probed by Raman spectroscopy. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20130101_002
