Co K edge XAS transmission of CoSO4.H2O | FAME | SSHADE

Processing math: 100%

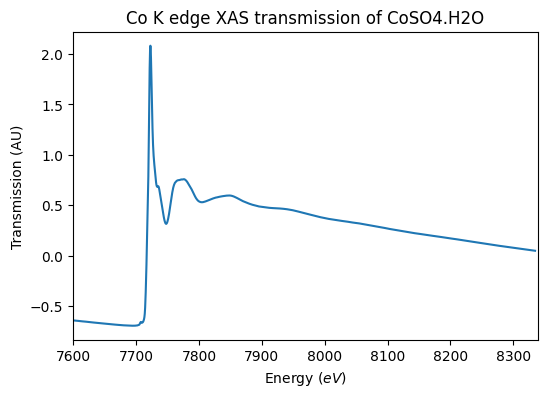

Spectrum preview

Title

Co K edge XAS transmission of CoSO4.H2O

Database

Experiment type

laboratory measurement

Spectrum type

transmission

Version

#1 (2024-09-30 12:27:58+0000 UTC)

Instrument parameters

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode: spectrum
Valid spectral range(s): 7599.0 - 8339.0 $eV$
Observation geometry: direct :
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Pellet of CoSO4.H2O mixed with BN
Origin: commercial
Texture: compact poor grained
Thickness: 2.0 $\pm$ 0.5 $mm$
Temperature: 300.0 $\pm$ 278.15 $K$
Pressure: 1.0 $bar$

References

Data reference: Afanasiev, Pavel; Hazemann, Isabelle; Geantet, Christophe (2014): Co K edge XAS transmission of Co oxides at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PA_20140919_001
