- Title

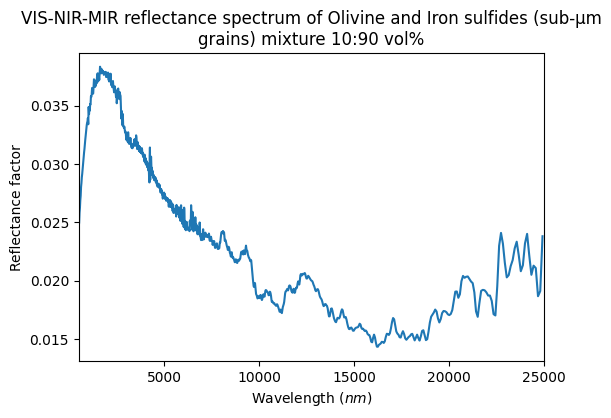

- VIS-NIR-MIR reflectance spectrum of Olivine and Iron sulfides (sub-µm grains) mixture 10:90 vol%
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-02-07 20:33:38 UTC+0000)
- Instrument
- Brucker Vertex 70 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2222.0 - 25000.0 $nm$
- Observation geometry
- biconical : i=15.0° ; e=30.0° ; az=0.0° ; ph=45.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 500.0 - 660.0 $nm$ ; 680.0 - 1380.0 $nm$ ; 1400.0 - 2980.0 $nm$ ; 3000.0 - 4200.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Mixture of Olivine and Iron sulfides powders (sub-micrometre-sized grains), Olivine:FeS 10:90 vol%
- Texture
- other
- Thickness
- 3.0 $\pm$ 0.5 $mm$
- Temperature
- 295.0 $K$
References
- Data reference
- Sultana, Robin (2019): VIS-NIR-MIR Reflectance spectra of mixtures of sub-µm grains of Olivine with Iron Sulfides or Anthracite, at different concentrations. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20230207_001
- Publications
