Spectrum preview
Title

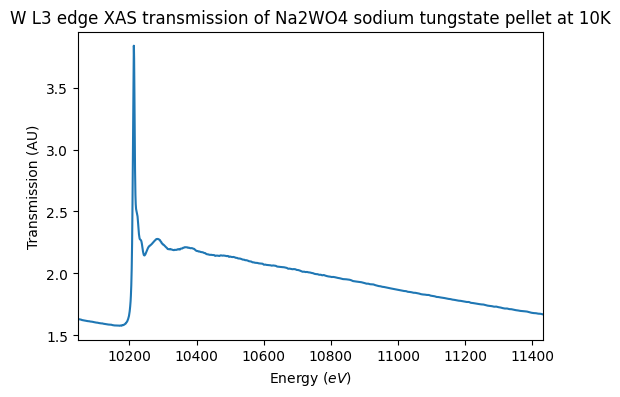

W L3 edge XAS transmission of Na2WO4 sodium tungstate pellet at 10K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2021-03-01 13:13:40 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
10046.8 - 11431.0 $eV$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Na2WO4•2(H2O) mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
10.0 $\pm$ 1.0 $K$
Fluid
References
Data reference
Proux, Olivier (2020): W L3 edge XAS transmission and XAS fluorescence of W reference compounds at 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20201209_001
