Spectrum preview
Title

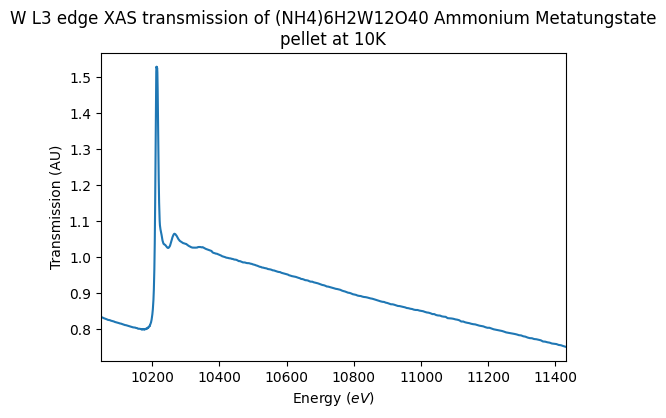

W L3 edge XAS transmission of (NH4)6H2W12O40 Ammonium Metatungstate pellet at 10K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2021-03-01 13:13:40+0000 UTC)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
10046.8 - 11431.0
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of (NH4)6H2W12O40 mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 0.5
Temperature
10.0 1.0
Fluid
References
Data reference
Proux, Olivier (2020): W L3 edge XAS transmission and XAS fluorescence of W reference compounds at 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20201209_001
