Spectrum preview
Title

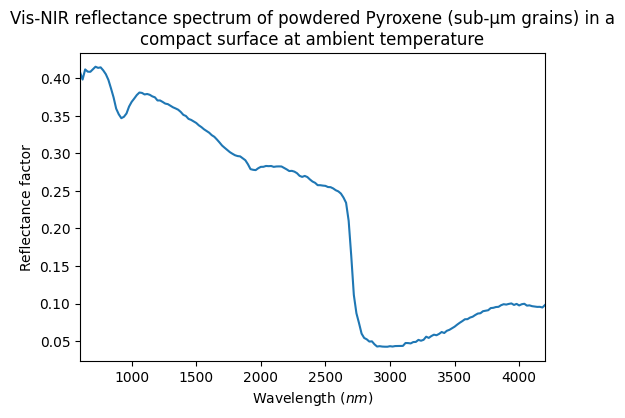

Vis-NIR reflectance spectrum of powdered Pyroxene (sub-µm grains) in a compact surface at ambient temperature
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-10-01 15:34:03 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
600.0 - 660.0 $nm$ ; 680.0 - 1380.0 $nm$ ; 1400.0 - 2980.0 $nm$ ; 3000.0 - 4200.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pyroxene powder (sub-micrometre sized grains)
Texture
other
Thickness
1.9 $\pm$ 0.5 $mm$
Temperature
295.0 $K$
References
Data reference
Sultana, Robin (2018): Vis-NIR reflectance spectra of powdered olivine, pyroxene, smectite and silica at 4 different grain sizes (from sub-µm to 200 µm) and with sub-µm grains in compact or porous surfaces. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20200908_001
