Spectrum preview
Title

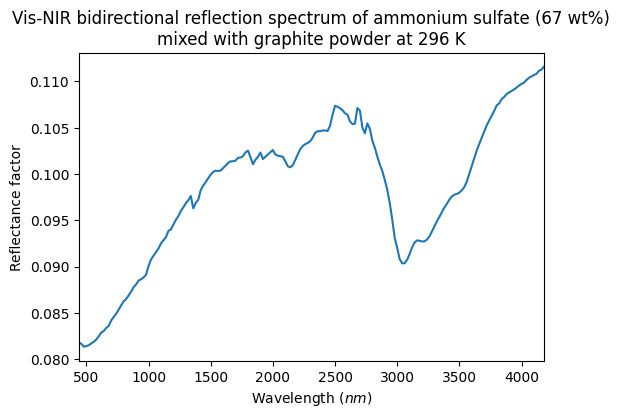

Vis-NIR bidirectional reflection spectrum of ammonium sulfate (67 wt%) mixed with graphite powder at 296 K
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-02-12 11:00:46 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
440.0 - 1380.0 $nm$ ; 1400.0 - 2980.0 $nm$ ; 3000.0 - 4180.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Ammonium sulfate (67 wt%) mixed with graphite powder at 296 K
Origin
commercial
Texture
loose granular
Thickness
1.0 $\pm$ 0.1 $mm$
Temperature
296.0 $K$
References
Data reference
Poch, Olivier (2018): Vis-NIR bidirectional reflection spectra of several ammonium salts mixed with graphite powder at 296 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20200212_001
