Spectrum preview
Title

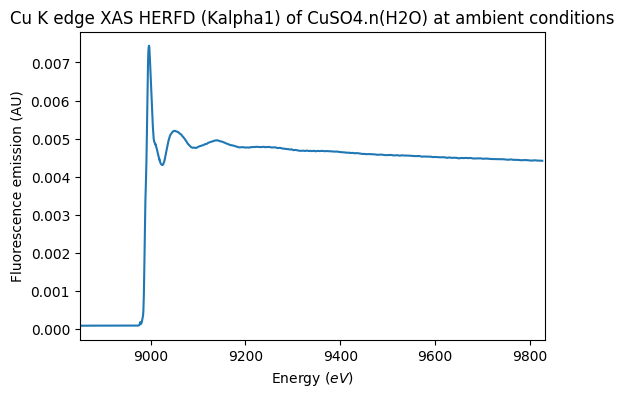

Cu K edge XAS HERFD (Kalpha1) of CuSO4.n(H2O) at ambient conditions
Database
Spectrum type
fluorescence emission
Version
#1 (2018-07-18 09:27:57)
Instrument parameters
Instrument
BM30B HERFD Si[444]
Valid spectral range(s)
8850.0 - 9832.0 $eV$
Observation mode
single spot
Sample preview
Name
Pellet of CuSO4.n(H2O) mixed with BN
Origin
laboratory, commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
