Spectrum preview
Title

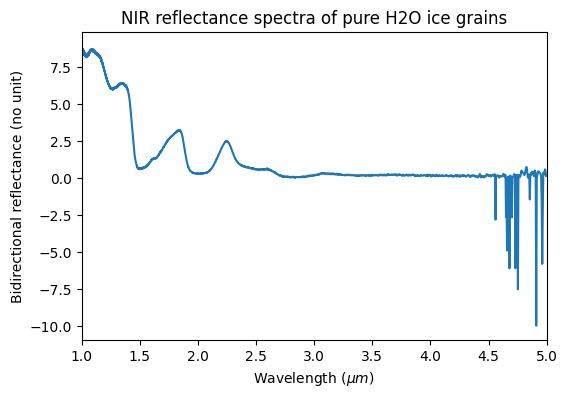

NIR reflectance spectra of pure H2O ice grains
Database
Experiment type
laboratory measurement
Spectrum type
bidirectional reflectance
Version
#1 (2017-07-18 16:57:23 UTC+0000)
Instrument parameters
Instrument
Nicolet 5700 - reflection Near-IR
Spectral observation mode
spectrum
Valid spectral range(s)
1.0 - 5.0 ${\mu}m$
Observation geometry
bidirectional : i=0.0° ; e=0.0° ; az=0.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pure H2O ice grains
Origin
laboratory
Texture
loose granular
Thickness
5.0 $\pm$ 0.5 $mm$
Temperature
150.0 $\pm$ 1.0 $K$
References
Data reference
Massé, Marion (2009): NIR reflectance spectra of granular H2O ice, gypsum and ice-gypsum mixtures in martian conditions. SSHADE/SSTONE (OSUG Data Center). Dataset/Spectral Data.
