Spectrum preview
Title

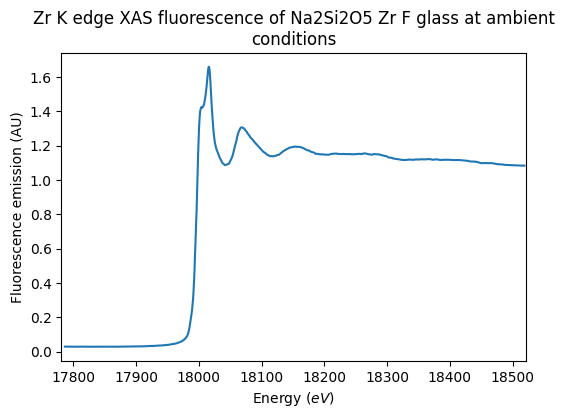

Zr K edge XAS fluorescence of Na2Si2O5 Zr F glass at ambient conditions
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2017-12-21 12:26:24 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Spectral observation mode
spectrum
Valid spectral range(s)
17781.000402229995 - 18522.00041899244 $eV$
Spatial observation mode
single spot
Sample preview
Name
Na2Si2O5 Zr F glass
Origin
laboratory
Texture
single grain
Thickness
0.5 $\pm$ 0.2 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Louvel, Marion; Sanchez-Valle, Carmen (2009): Zr K edge XAS fluorescence of Na2Si2O5 Zr F glass at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ML_20171221_003
Publications
