Spectrum preview
Title

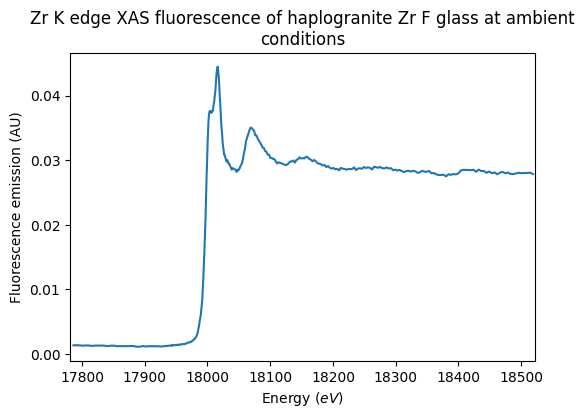

Zr K edge XAS fluorescence of haplogranite Zr F glass at ambient conditions
Database
Spectrum type
fluorescence emission
Version
#1 (2017-12-21 10:14:20)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
BM30B fluorescence
Valid spectral range(s)
17781.0 - 18522.0 eV
Observation mode
single spot
Sample preview
Name
Haplogranite Zr F glass
Origin
laboratory
Texture
single grain
Thickness
0.5 $\pm$ 0.2 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
Irradiated by
  • None
