- Title

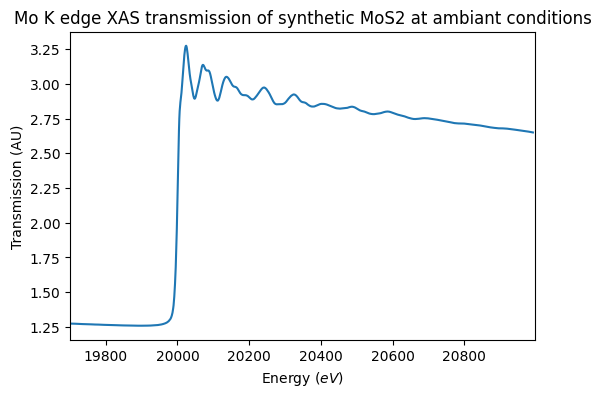

- Mo K edge XAS transmission of synthetic MoS2 at ambiant conditions
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2022-09-08 08:55:30+0000 UTC)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 19700.5 - 20997.0 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- Pellet of Synthetic MoS2 mixed with BN
- Origin
- commercial
- Texture
- compact poor grained
- Thickness
- 2.0 $\pm$ 0.5 $mm$
- Temperature
- 20.0 $\pm$ 5.0 $^{\circ}C$
References
- Data reference
- Kokh, Maria; Wilke, Max; Borchert, Manuela (2022): Mo K edge XAS transmission of molybdenum compounds for the study of hydrothermal fluids. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_MK_20220405_001
