- Title

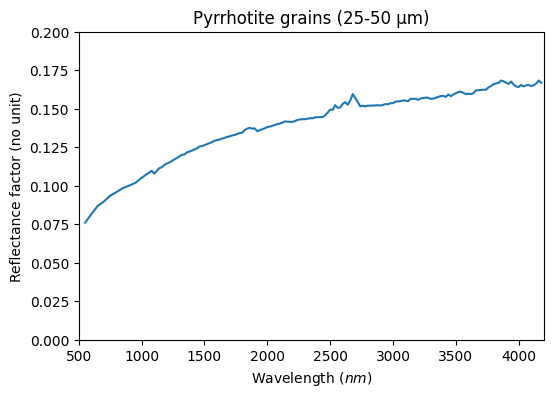

- Pyrrhotite grains (25-50 µm)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2021-10-28 16:20:37 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 500.0 - 650.0 $nm$ ; 700.0 - 1000.0 $nm$ ; 1020.0 - 1380.0 $nm$ ; 1400.0 - 2980.0 $nm$ ; 3000.0 - 4200.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=90.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 500.0 - 660.0 $nm$ ; 680.0 - 1420.0 $nm$ ; 1440.0 - 2640.0 $nm$ ; 2660.0 - 4200.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=90.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pyrrhotite grains 25-50 μm at 173 K
- Texture
- loose granular
- Temperature
- 173.0 $\pm$ 1.0 $K$
- Fluid
-
- $N_2$ , 100.0%
References
- Data reference
- Ciarniello, Mauro; Moroz, Lyuba; VINOGRADOFF, VASSILISSA; Istiqomah, Istiqomah; Poch, Olivier; Sultana, Robin; Beck, Pierre (2018): Vis-IR spectroscopy of mixtures including water ice, kerite, and pyrrhotite. SSHADE/REFL_SLAB (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_MC_20181026_1
- Publications
