- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.38 - 0.66 ${\mu}m$ ; 0.68 - 1.48 ${\mu}m$ ; 1.5 - 3.0 ${\mu}m$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name

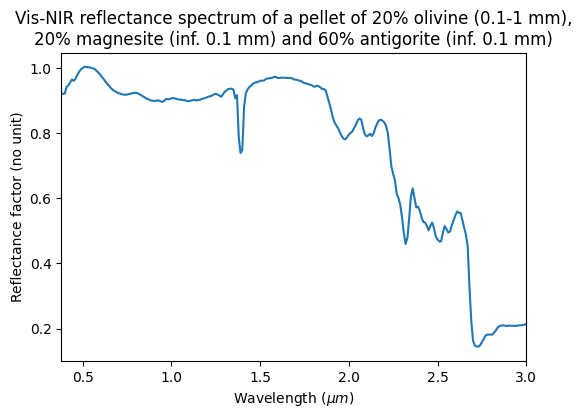

- 20% olivine (0.1-1 mm) + 20% magnesite (inf. 0.1 mm) + 60% antigorite (inf. 0.1 mm) pellet
- Texture
- compact mixed
- Thickness
- 0.8 $mm$
- Temperature
- 20.0 $\pm$ 10.0 $^{\circ}C$
References
- Data reference
- Mandon, Lucia; Beck, Pierre (2020): Vis-NIR reflectance spectra of pellets of olivine (0.1-1 mm), magnesite (inf. 0.1 mm) and antigorite (inf. 0.1 mm) mixtures. SSHADE/ROMA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LM_20221111_0001
